Description
Application

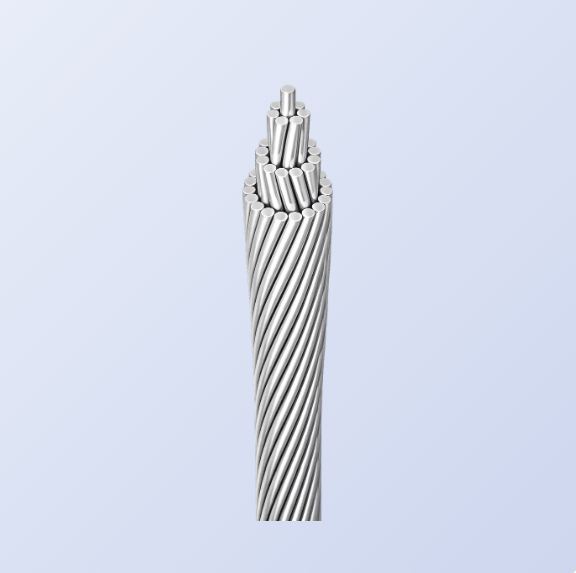

Stranded 1350 aluminum conductors shown in this section of data are classified as follows: Class AA for bare conductors usually used in overhead lines; Class A for conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required. Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available. Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.Product Features
- Aluminum alloy 1350-H19 wires, concentrically stranded.
Standards
AAC bare conductors meet or excede the following ASTM Specifications:- B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
- B-231 Aluminum Conductors, Concentric-Lay-Stranded
- B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors
AAC - All-Aluminum Conductor
| Code Word | Size AWG/KCMIL | Stranding | Diameter inch | Cross Sectional Area (sq. in.) | Weight lb/1000 ft | Rated Breaking Strength lb | Resistance1 Ω/1000ft | Ampacity Rating2 Amps | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| # of Wires | Class | Indiv. Wire | Complete Cable OD | DC @ 20˚C | AC @ 75˚C | ||||||
| Peachbell | 6 | 7/w | A | .0612 | .184 | .0206 | 24.6 | 563 | .658 | .805 | 103 |
| Rose | 4 | 7/w | A | .0772 | .232 | .0328 | 39.2 | 881 | .414 | .506 | 138 |
| Iris | 2 | 7/w | AA,A | .0974 | .292 | .0521 | 62.3 | 1,350 | .260 | .318 | 185 |
| Pansey | 1 | 7/w | AA,A | .1093 | .328 | .0657 | 78.5 | 1,640 | .207 | .252 | 214 |
| Poppy | 1/0 | 7/w | AA,A | .1228 | .368 | .0829 | 99.1 | 1,990 | .164 | .202 | 247 |
| Aster | 2/0 | 7/w | AA,A | .1379 | .414 | .1045 | 124.9 | 2,510 | .130 | .159 | 286 |
| Phlox | 3/0 | 7/w | AA,A | .1548 | .464 | .1318 | 157.5 | 3,040 | .103 | .126 | 331 |
| Oxlip | 4/0 | 7/w | AA,A | .1739 | .522 | .1662 | 198.6 | 3,830 | .0817 | .0999 | 383 |
| Sneezewort | 250 | 7/w | AA | .1890 | .567 | .1964 | 234.7 | 4,520 | .0691 | .0846 | 425 |
| Valerian | 250 | 19/w | A | .1147 | .574 | .1964 | 234.7 | 4,660 | .0691 | .0846 | 426 |
| Daisy | 266.8 | 19/w | AA | .1953 | .586 | .2095 | 250.5 | 4,830 | .0648 | .0793 | 443 |
| Laurel | 266.8 | 19/w | A | .1185 | .593 | .2095 | 250.5 | 4,970 | .0648 | .0793 | 444 |
| Peony | 300 | 19/w | A | .1257 | .629 | .2356 | 286.1 | 5,480 | .0576 | .0706 | 478 |
| Tulip | 336.4 | 19/w | A | .1331 | .666 | .2642 | 315.8 | 6,150 | .0514 | .0630 | 513 |
| Daffodil | 350 | 19/w | A | .1357 | .679 | .2749 | 328.6 | 6,390 | .0494 | .0605 | 526 |
| Canna | 397.5 | 19/w | AA,A | .1447 | .724 | .3122 | 373.2 | 7,110 | .0435 | .0534 | 570 |
| Goldentuft | 450 | 19/w | AA | .1538 | .769 | .3534 | 422.4 | 7,890 | .0384 | .0472 | 616 |
| Cosmos | 477 | 19/w | A | .1584 | .793 | .3746 | 447.8 | 8,360 | .0362 | .0445 | 639 |
| Syringa | 477 | 37/w | A | .1135 | .795 | .3746 | 447.8 | 8,690 | .0362 | .0445 | 639 |
| Zinnia | 500 | 19/w | AA | .1622 | .811 | .3927 | 469.4 | 8,760 | .0346 | .0425 | 658 |
AAC - All-Aluminum Conductor
| Code Word | Size AWG/KCMIL | Stranding | Diameter inch | Cross Sectional Area (sq. in.) | Weight lb/1000 ft | Rated Breaking Strength lb | Resistance1 Ω/1000ft | Ampacity Rating2 Amps | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| # of Wires | Class | Indiv. Wire | Complete Cable OD | DC @ 20˚C | AC @ 75˚C | ||||||
| Hyacinth | 500 | 37/w | A | .1162 | .813 | .329 | 469.4 | 9,110 | .0346 | .0425 | 658 |
| Dahlia | 556.5 | 19/w | AA | .1711 | .856 | .4371 | 522.4 | 9,750 | .0311 | .0382 | 703 |
| Mistletoe | 556.5 | 37/w | AA,A | .1226 | .858 | .4371 | 522.4 | 9,940 | .0311 | .0382 | 704 |
| Meadowsweet | 600 | 37/w | AA,A | .1273 | .891 | .4712 | 563.2 | 10,700 | .0288 | .0355 | 738 |
| Orchid | 636 | 37/w | AA,A | .1311 | .918 | .4995 | 597.0 | 11,400 | .0272 | .0355 | 765 |
| Heuchera | 650 | 37/w | AA | .1326 | .928 | .5105 | 610.2 | 11,600 | .0266 | .0328 | 775 |
| Verbena | 700 | 37/w | AA | .1375 | .963 | .5498 | 657.1 | 12,500 | .0247 | .0305 | 812 |
| Flag | 700 | 61/w | A | .1071 | .964 | .5498 | 657.1 | 12,900 | .0274 | .0305 | 812 |
| Violet | 715.5 | 37/w | AA | .1391 | .974 | .5620 | 671.7 | 12,800 | .0242 | .0299 | 823 |
| Nasturtium | 715.5 | 61/w | A | .1083 | .975 | .5620 | 671.7 | 13,100 | .0242 | .0299 | 823 |
| Petunia | 750 | 37/w | AA | .1424 | .997 | .5891 | 704.0 | 13,500 | .0230 | .0286 | 847 |
| Cattail | 750 | 61/w | A | .1109 | .998 | .5891 | 704.0 | 13,500 | .0230 | .0286 | 847 |
| Arbutus | 795 | 37/w | AA | .1446 | 1,026 | .6244 | 746.3 | 13,900 | .0217 | .0271 | 878 |
| Lilac | 795 | 61/w | A | .1142 | 1,028 | .6244 | 746.3 | 14,300 | .0217 | .0270 | 879 |
| Cockscomb | 900 | 37/w | AA | .1560 | 1,092 | .7069 | 844.9 | 15,400 | .0192 | .0239 | 948 |
| Snapdragon | 900 | 61/w | A | .1215 | 1,094 | .7069 | 844.9 | 15,900 | .0192 | .0239 | 948 |
| Magnolia | 954 | 37/w | AA | .1606 | 1,124 | .7493 | 895.6 | 16,400 | .0181 | .0226 | 982 |
| Goldenrod | 954 | 61/w | A | .1251 | 1,126 | .7493 | 895.6 | 16,900 | .0181 | .0226 | 983 |
| Hawkweed | 1000 | 37/w | AA | .1644 | 1,150 | .7854 | 938.7 | 17,200 | .0173 | .0216 | 1010 |
| Camellia | 1000 | 61/w | A | .1280 | 1,152 | .7854 | 938.7 | 17,700 | .0173 | .0216 | 1011 |
| Bluebell | 1033.5 | 37/w | AA | .1671 | 1,170 | .8117 | 970.2 | 17,700 | .0167 | .0210 | 1031 |
| Larkspur | 1033.5 | 61/w | A | .1302 | 1,172 | .8117 | 970.2 | 18,300 | .0167 | .0210 | 1032 |
| Marigold | 1113 | 61/w | AA,A | .1351 | 1,216 | .8742 | 1045 | 19,700 | .0155 | .0195 | 1079 |
| Hawthorn | 1192.5 | 61/w | AA,A | .1398 | 1,258 | .9366 | 1119 | 21,100 | .0145 | .0183 | 1124 |
| Narcissus | 1272 | 61/w | AA,A | .1444 | 1,300 | .9990 | 1194 | 22,000 | .0136 | .0173 | 1169 |
| Columbine | 1351.5 | 61/w | AA,A | .1489 | 1,340 | 1,061 | 1269 | 23,400 | .0128 | .0163 | 1212 |
| Carnation | 1431 | 61/w | AA,A | .1532 | 1,379 | 1,124 | 1343 | 24,300 | .0121 | .0155 | 1253 |
| Gladiolus | 1510.5 | 61/w | AA,A | .1574 | 1,417 | 1,186 | 1418 | 25,600 | .0144 | .0147 | 1294 |
| Coreopsis | 1590 | 61/w | AA | .1614 | 1,454 | 1,249 | 1493 | 27,000 | .0109 | .0141 | 1333 |
| Jessamine | 1750 | 61/w | AA | .1694 | 1,525 | 1,374 | 1643 | 29,700 | .00988 | .0129 | 1408 |
| Cowslip | 2000 | 91/w | A | .1482 | 1,630 | 1,571 | 1877 | 34,200 | .00864 | .0115 | 1518 |
| Sagebrush | 2250 | 91/w | A | .1572 | 1,729 | 1,767 | 2131 | 37,500 | .00776 | .0105 | 1612 |
| Lupine | 2500 | 91/w | A | .1657 | 1,823 | 1,964 | 2370 | 41,900 | .00698 | .00969 | 1706 |
| Bitterroot | 2750 | 91/w | A | .1739 | 1,913 | 2,160 | 2607 | 46,100 | .00635 | .00900 | 1793 |
| Trillium | 3000 | 127/w | A | .1537 | 1,996 | 2,356 | 2844 | 50,300 | .00582 | .00834 | 1874 |
| Bluebonnet | 3500 | 127/w | A | .1660 | 2,158 | 2,749 | 3350 | 58,700 | .0049 | .00756 | 2024 |
1. Resistance is calculated based on aluminum EC (1350) conductivity of 61.2% IACS.
2. Ampacity ratings are based on 75°C conductor temperature, 25°C ambient, 2 ft/sec wind, in sun (96 W/ft2 heat), 0.5 coefficients of emissivity and absorption.
