Description
Applications
Rated 5kV- 35kV cable is used for distribution circuits in industrial and commercial installations. Suitable for use in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC. Temperature not to exceed 105°C (MV105).Product Features
- Voltage ratings: 5kV, 15kV, 25kV, and 35kV
- Available in aluminum and copper conductors
- EPR or TRXLPE insulation options
- Copper tape shield for reliable fault detection
- PVC jacket, sunlight and moisture resistant
- UL Type MV-105, rated 105°C
- 100% and 133% insulation levels
- Compact stranded conductor that reduces conduit fill
Standards
- UL 1072
- ICEA S-93-639 (NEMA WC74)
- AEIC CS8
- NEC Article 328

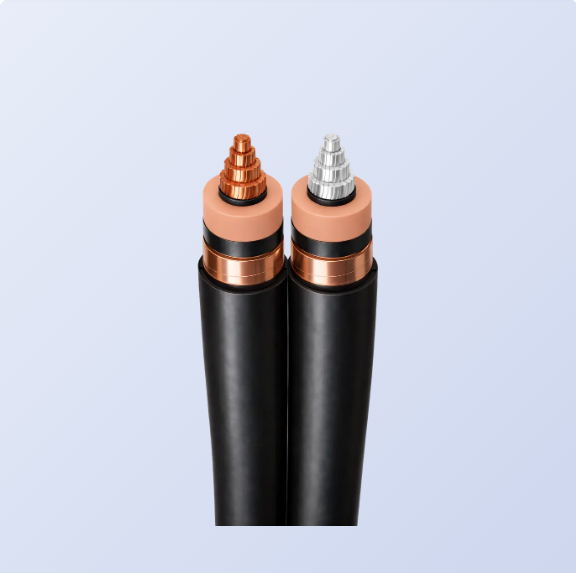

Medium Voltage Power Cable
| Parameter | Value |
|---|---|
| Metal Type | Aluminum or Copper |
| Voltage | 5 - 35 kV |
| Conductor | Compact |
| Stranding | Filled or Unfilled |
| Temperature | MV-105 |
| Insulation | EPR or TRXLPE |
| Insulation Level | 100% or 133% |
| Metallic Shield | Copper Tape |
| Jacket | PVC |
