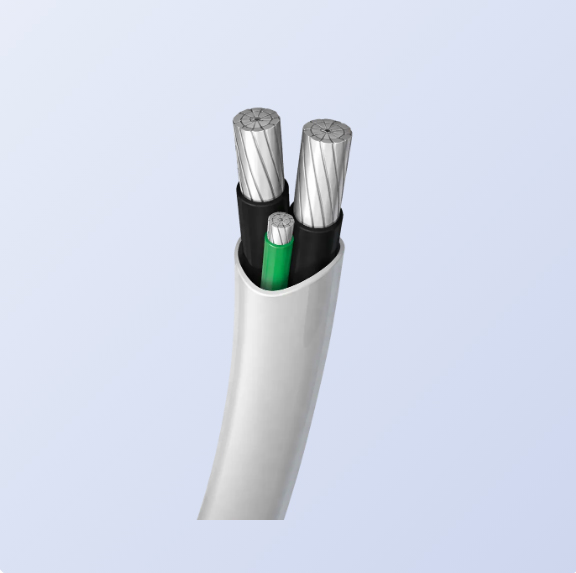

SEU Aluminum

Application

Electro Cable’s Service Entrance Cable Style U (SEU) is for use as primary cable to deliver overhead electrical service from the service head to house meter, 90°C wet or dry and interior wiring applications. The voltage rating is 600V.

Product Features

• Type SE cable is constructed with AA-8000 series aluminum alloy, compact stranded conductors.
• Cross-linked polyethylene insulation rated for a maximum operation temperature of 90°C in wet and dry locations.
• Eco friendly sunlight resistant, flame retardant and heavy metal free Polyvinyl Chloride (PVC) Jacket.
• Insulation and Jacket materials are in compliance with RoHS, Directive 2002/95/EC.
• Sequential foot markings for easier inventory control management.

Standards

• UL Standard 44 for type XHHW-2 conductors, (UL) Standard 854, Federal Specification JC-30B NEC, Approved for use in accordance with the requirements of the NEC NFPA 70, 2011 Edition.
