Description
Application
To supply 120 volts aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.Product Features

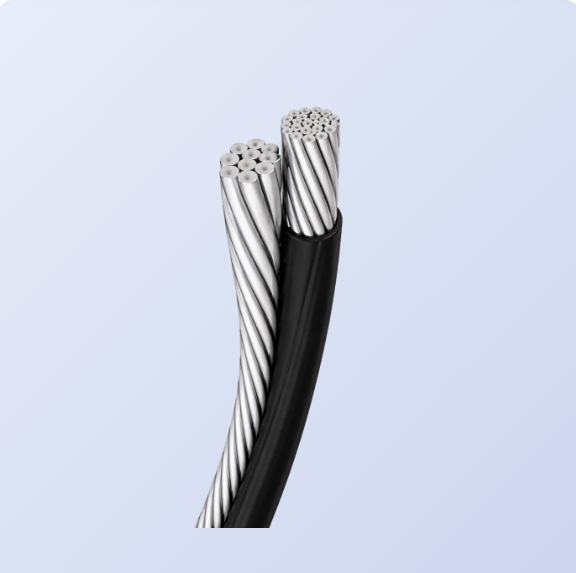

- Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC or ACSR.
Standards
Service drop cable meets or exceeds the following ASTM specifications:- B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
- B-231 Aluminum Conductors, Concentric-Lay-Stranded
- B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
- B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors
- B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
- ANSI/ICEA S-76-474
AAC Neutral Messenger
| Code Word | Phase Conductors | Bare Neutral | Weight per 1000 ft. (lbs) | Rating (AMPS) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size AWG | Strand | Insulation Thickness (MLS) | Size AWG | Strand | Breaking Strength (lbs) | XLP | Poly | XLP | Poly | |
| Peakingese | 6 | Solid | 45 | 6 | 7/w | 563 | 63.5 | 61.7 | 85 | 70 |
| Collie | 6 | 7/w | 45 | 6 | 7/w | 563 | 66.8 | 63.1 | 85 | 70 |
| Dachshund | 4 | Solid | 45 | 4 | 7/w | 881 | 95.5 | 93.4 | 110 | 90 |
| Spaniel | 4 | 7/w | 45 | 4 | 7/w | 881 | 100.5 | 95.4 | 110 | 90 |
| Doberman | 2 | 7/w | 45 | 2 | 7/w | 1,350 | 152.7 | 145.7 | 150 | 120 |
| Malamute | 1/0 | 19/w | 60 | 1/0 | 7/w | 1,990 | 242.6 | 234.2 | 205 | 160 |
ACSR Neutral Messenger
| Code Word | Phase Conductors | Bare Neutral | Weight per 1000 ft. (lbs) | Rating (AMPS) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size AWG | Strand | Insulation Thickness (MLS) | Size AWG | Strand | Breaking Strength (lbs) | XLP | Poly | XLP | Poly | |
| Setter | 6 | Solid | 45 | 6 | 6/1 | 1,190 | 75.0 | 73.2 | 85 | 70 |
| Shepherd | 6 | 7/w | 45 | 6 | 6/1 | 1,190 | 78.3 | 74.6 | 85 | 70 |
| Eskimo | 4 | Solid | 45 | 4 | 6/1 | 1,860 | 113.7 | 111.6 | 110 | 90 |
| Terrier | 4 | 7/w | 45 | 4 | 6/1 | 1,860 | 118.7 | 113.6 | 110 | 90 |
| Chow | 2 | 7/w | 45 | 2 | 6/1 | 2,850 | 181.7 | 174.7 | 150 | 120 |
| Bull | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4,380 | 288.7 | 280.3 | 200 | 160 |
AAAC Alloy Neutral Messenger
| Code Word | Phase Conductors | Bare Neutral | Weight per 1000 ft. (lbs) | Rating (AMPS) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size AWG | Strand | Insulation Thickness (MLS) | Size AWG | Strand | Breaking Strength (lbs) | XLP | Poly | XLP | Poly | |
| Chihuahua | 6 | Solid | 45 | 6 | 7/w | 1,110 | 67.6 | 65.8 | 85 | 70 |
| Vizsla | 6 | 7/w | 45 | 6 | 7/w | 1,110 | 70.9 | 67.2 | 85 | 70 |
| Harrier | 4 | Solid | 45 | 4 | 7/w | 1,760 | 102.0 | 99.9 | 110 | 90 |
| Whippet | 4 | 7/w | 45 | 4 | 7/w | 1,760 | 107.0 | 101.9 | 110 | 90 |
| Schnauzer | 2 | 7/w | 45 | 2 | 7/w | 2,800 | 163.3 | 156.2 | 150 | 120 |
| Heeler | 1/0 | 19/w | 60 | 1/0 | 7/w | 4,460 | 259.2 | 250.8 | 200 | 160 |
* Note: Designated sizes are ACSR 6/1 diameter equivalent resistivity per ASTM-B-399 for 6201. Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperatures of 40°C; emissivity 0.9; 2ft/sec. wind in sun.
** To determine current ampacity by conductor size, please consult The National Electric Code, latest edition.
The data is approximate and subject to normal manufacturing tolerances.
